SMA Sunny Tripower X 12-50 Business Inverter 2 MPPT Three Phase 12kW Grid Feed-In

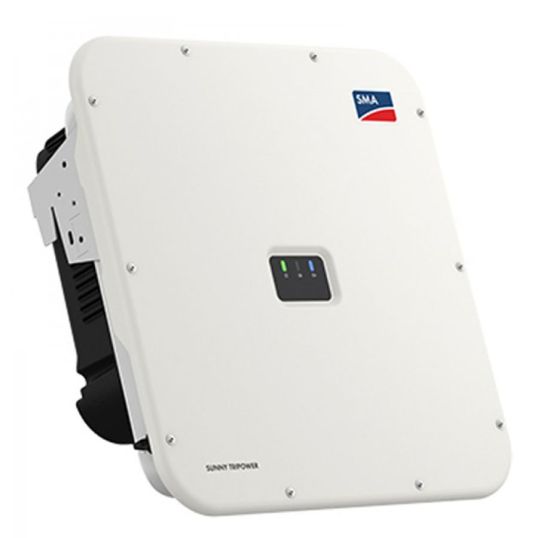

Name: SMA Sunny Tripower X-12 Business Inverter 3 Phase 12kW
SKU: SSTSTP12-50
Availability: InStock

$SMA\SMA_STP12-50.jpg$

Description

SMA Sunny Tripower X-12 Business Inverter 3 Phase 12kW

Looking for something specific? Search with keywords to help filter your required specifications.

Features	3 MPP Trackers High Input Current for high performance PV modules Modular Design allowing expansion for future energy management functions Yield Increase through integrated SMA ShadeFix SMA Smart Connected SMA ArcFix arc-fault circuit interrupter DC Overvoltage protection & simplified grid & PV System protection Monitoring and control for up to 5 inverters (max. 135kVA) included Direct access to Sunny Portal powered by ennexOS SMA Dynamic Power Control
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	STP12-50
AC Max. Apparent Power	12000 VA
AC Nominal Voltage	230-400 Volt
AC Operating Frequency	50 Hz
AC Operating Voltage	176-275 Volt
AC Output Power	12 kW
AC Output Current	17.4 Amp
Climate Category	4K26
Communication Port	Ethernet/Wi-Fi/RS485 Optional
Connection Type	SUNCLIX/Spring-Cage Terminal
Cooling Method	Opticool
DC Input Power	18000 Wp
DC Max. Input Current	24 Amp
DC Input Voltage	1000 Volt
DC MPPT Voltage Range	206-800 Volt
DC Nominal Voltage	570 Volt
DC Start-up Voltage	188 Volt
Depth	266 mm
Display Type	Status/Fault/Co mmunication LED Display
Efficiency	98.20%
Height	728 mm
IP Rating	IP65
European Weighted Efficiency	97.70%
Mounting Method	Wall
Noise Level	<65 dBA
Number of MPPTs	3
Operating Temperature	-25 to 60 deg C
Phase	3 Phase
Power Factor	1/0 overexcited to 0 underexcited
Relative Humidity	100%
Total Harmonic Distortion	<3%
Width	762 mm
