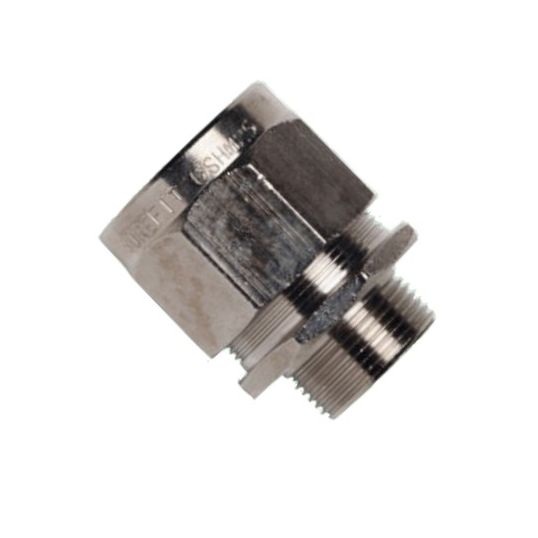

Surefit Cable Gland EMC VSD Screened Cable M40 x 1.5 34.5-43.8mm IP66/68

Description

Cable Gland, EMC VSD Screened Cable, M40 x 1.5, 13.9 mm Thread Length, 1.5 mm Pitch, 34.5 mm Min. Sheath OD, 43.8 mm Max. Sheath OD, 56.8 mm Width Across Flats, 52.3 mm Width Across Corners, 50 mm Protrusion Length, 34.1 mm Max. Bedding OD, IP66/68, Brass Body, Nickel Plated Finish, 6/Pack

Key Specifications

SKU	SURGSHM40
Brand	Surefit
Range Name	Type GSHM
Product Type	Cable Glands EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Nickel plated brass cable glands for use with circular armoured or braided cables to secure the amour or braid and to provide electrical continuity between the armour or braid, the entry thread of the gland and the panel or enclosure Suitable for use in machine and equipment construction, measuring and regulation equipment, construction site installation and many other applications where a robust armoured or braided non weatherproof gland type termination is required
Standard Pack Size	6
UNSPSC Class	39121400
UOM	EA
Vendor Product	GSHM40
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP66/68
Max. Sheath OD	43.8 mm
Min. Sheath OD	34.5 mm
Thread Length	13.9 mm
Thread Size	M40 x 1.5
Thread Pitch	1.5 mm
Width Across Corners	52.3 mm
Width Across Flats	56.8 mm
