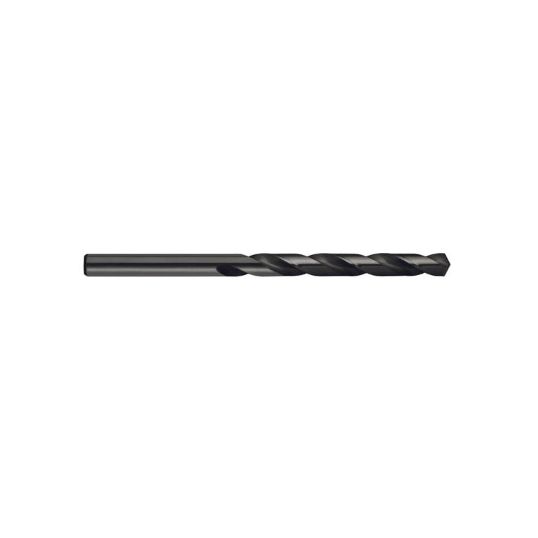

Sutton Jobber Drill Bit M2 HSS 8.5mm Work 75mm OAL 117mm Blue

chevron-left

Description

chevron-down
Jobber Drill Bit, 8.5 mm, 75 mm Working Length, 5xd Cutting Depth, 117 mm Overall Length, 118 deg Type A Point, R30 Flute, M2 High Speed Steel, Blue

Key Specifications

chevron-down
SKU
SUTD1020850
Brand
Sutton Tools
Product Type
Drill Bits Jobber

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 118 deg web thinned point reduces the amount of thrust required
  • Precision engineered parallel shank for accurate hole size
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels
Standard Pack Size 1
UNSPSC Class 23241600
UOM EA
Vendor Product SUTD1020850
Bit Size 8.5 mm
Cutting Depth 5xd
Finish Blue
Flute Type R30
Material M2 High Speed Steel
Overall Length 117 mm
Point Type 118 deg Type A
Working Length 75 mm
