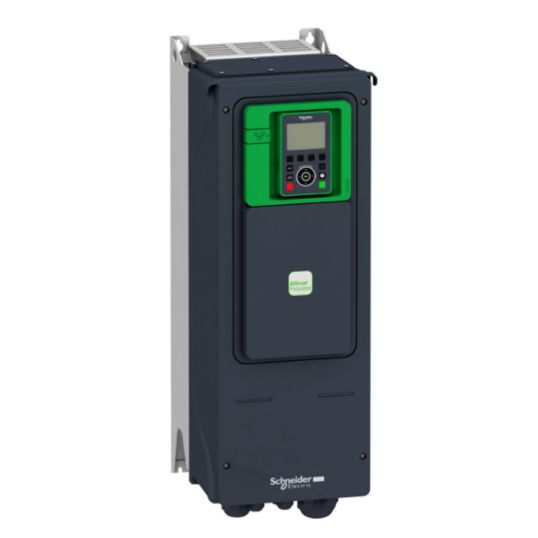

Schneider Altivar Process ATV600 Variable Speed Drive 5-5kW 10.4A 400-480V 50/60Hz 3Phase IP55 Wall Mount
Description
Variable Speed Drive, 400-480 Volt, 10.4 Amp, 5.5 kW, 50/60 Hz, 3 Phase, 3 Input, IP55, Wall Mount, -40 to 70 deg C, 678 mm Height, 264 mm Width, 272 mm Depth
Key Specifications
| Barcode (EAN-13) |
3606485410517
|
|---|---|
| SKU |
TEEATV650U55N4
|
| Brand |
Schneider
|
| Product Type |
Motor Starters Variable Speed Drive
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122000 |
| UOM | EA |
| Vendor Product | ATV650U55N4 |
| Current | 10.4 Amp |
| Frequency | 50/60 Hz |
| Depth | 272mm |
| Height | 678mm |
| IP Rating | IP55 |
| Motor Power | 5.5 kW |
| Mounting Method | Wall |
| Operating Voltage | 400-480 Volt |
| Number of Inputs | 3 |
| Phase | 3 Phase |
| Temperature | -40 to 70 deg C |
| Width | 264mm |
