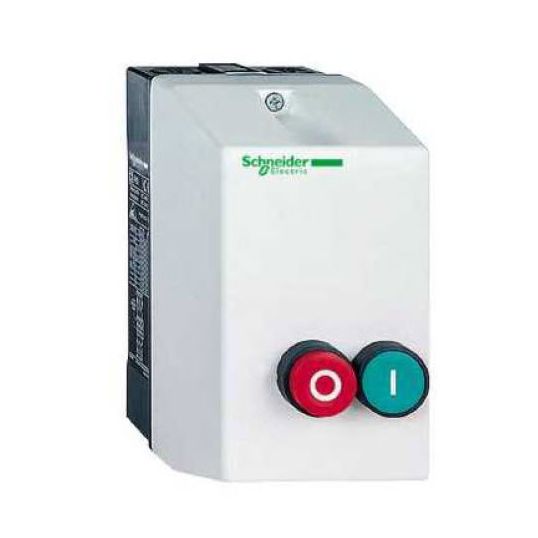

Schneider Motor Starter Direct On Line 10kW 415V Polycarbonate IP65
Description
DOL Motor Starter, 25 Amp AC1, 50/60 Hz, 7.5 kW AC3, 10 kW at 500 Volt AC, 415 Volt AC Coil Voltage, -5 to 40 deg C, Green Pushbutton Start/Red Pushbutton Stop Control, IP65, Polycarbonate, 201 mm Height, 101 mm Width, 153.5 mm Depth, Overload Purchased Separately
Key Specifications
| Barcode (EAN-13) |
3389110578256
|
|---|---|
| SKU |
TEELE1-D18N7
|
| Brand |
Schneider
|
| Range Name |
TeSys Model D
|
| Product Type |
Motor Starters DOL
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LE1D18N7 |
| Coil Voltage | 415 Volt AC |
| Control Type | Green Pushbutton Start/Red Pushbutton Stop |
| Depth | 153.5 mm |
| Frequency | 50/60 Hz |
| Height | 201 mm |
| IP Rating | IP65 |
| Material | Polycarbonate |
| Operating Temperature | -5 to 40 deg C |
| Please Note | Overload Purchased Separately |
| Wattage | 7.5 kW AC3 |
| Width | 101 mm |
