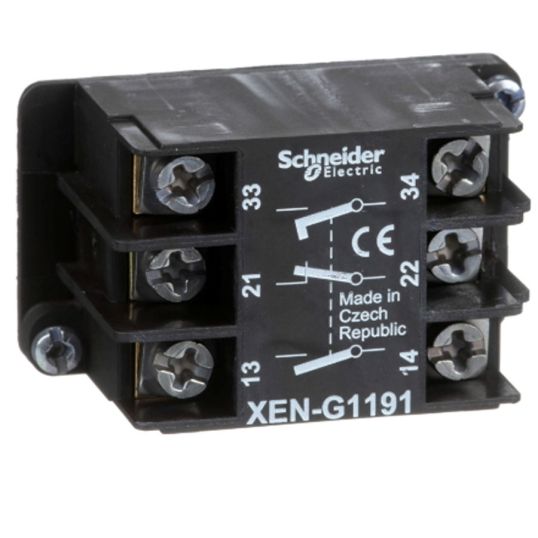

Schneider Harmony Contact Block Single Spring Return 2-Speed Front Mounting 2NO+1NC
Description
Contact Block, 600 Volt, 10 Amp, 2 Normally Opened/1 Normally Closed Configuration, Slow Break Staggered Contact Operation, Screw/Clamp Terminal, Front Mounting, For Use With XACA/XACA9 Control Stations and Enclosures, -25 to 70 deg C
Key Specifications
| Barcode (EAN-13) |
3389110645705
|
|---|---|
| SKU |
TEEXEN-G1191
|
| Brand |
Schneider
|
| Product Type |
Operator Accessories
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | XENG1191 |
| Contact Configuration | 2 Normally Opened/1 Normally Closed |
| Contact Operation | Slow Break Staggered |
| For Use With | XACA/XACA9 Control Stations and Enclosures |
| Current | 10 Amp |
| Mounting Method | Front |
| Temperature | -25 to 70 deg C |
| Terminal Connection | Screw/Clamp |
| Voltage | 600 Volt |
