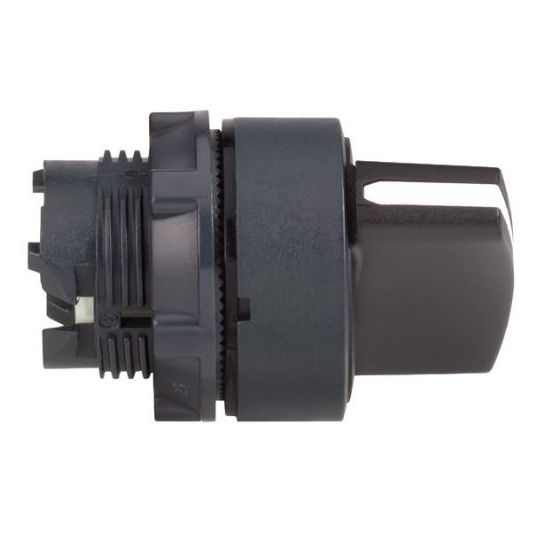

Schneider Rotary Selector Actuator Only 3 Position Plastic Body Non Illuminated Spring Return From Right to Center Black

$Schneider\Schneider_ZB5AD8.jpg$

Description

Rotary Selector Actuator, Standard Actuator Head, Spring Return From Right to Centre, 22mm Mounting Hole, 3 Position at 45 deg, Standard Handle Operator, Tightening Torque: 0.6 N/m, 1000000 Cycles, Screw Clamp Terminal, IP66, IP67, IP69, IP69K, NEMA 13/4X, Panel Mount, Plastic, Dark Grey Plastic, Black, -40 to 70 deg C, 28.5 mm Diameter, 29 mm Height, 29 mm Width, 46 mm Depth

Key Specifications

Barcode (EAN-13)	3389110905311
SKU	TEEZB5-AD8
Brand	Schneider
Range Name	Harmony Style 5
Product Type	Selector Actuators Rotary

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZB5AD8
Colour	Black
Depth	46 mm
Diameter	28.5 mm
Height	29 mm
Head Type	Standard
IP Rating	IP66/67/69/69K
Mounting Diameter	22 mm
Mounting Method	Panel
Number of Positions	3 at 45 deg
NEMA Rating	NEMA 13/4X
Operating Cycles	1000000 Cycles
Operator Action	Spring Return Right
Operator Type	Standard Handle
Temperature	-40 to 70 deg C
Terminal Connection	Screw Clamp
Tightening Torque	0.6 Nm
Width	29 mm
