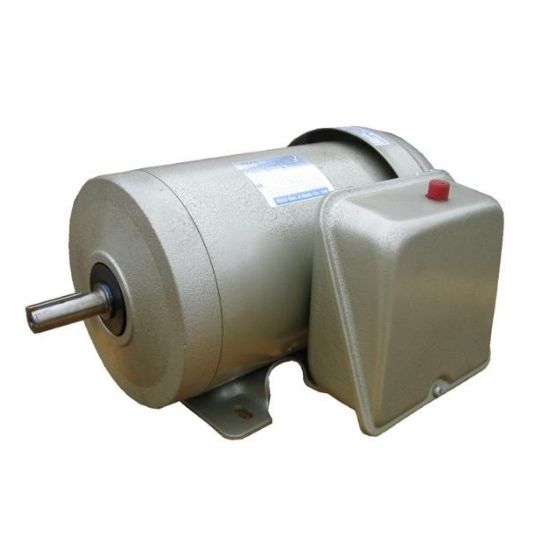

Teco Electric Motor Squirrel Cage Induction 4P 0.37kW 1Ph 240V B56 Frame Foot Mount

Description

Electric Motor Squirrel Cage Induction, 240 Volt AC, 5.4 Amp, 0.37 kW, 50 Hz, 1 Phase, 1450 rpm, 4 Pole, IP44, Frame: B56, Shaft Size: 15.87 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 3.7 N/m, Foot Mount, Insulation Class: Class F, -10 to 40 deg C, Rolled Steel, 320 mm Length x 245 mm Width x 181 mm Height

Key Specifications

SKU	TEO037/0.37BB4
Brand	Teco
Range Name	B56 Rolled Steel Imperial
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Totally enclosed fan cooled Highest quality insulation system utilizing Class H and F materials Low temperature rise for substantial thermal reserve Continuous rated, duty type S1 Rolled steel shell frame with cast iron endshields Steel terminal box and fan cover Steel terminal box and fan cover
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	037/0.37BB4
Current	5.4 Amp
Bearing Type	Single Row Deep Groove
Frame	Size B56
Frequency	50 Hz
Height	181 mm
Horsepower	0.37 kW
Insulation Class	Class F
IP Rating	IP44
Material	Rolled Steel
Mounting Method	Foot
Number Of Poles	4 Pole
Phase	1 Phase
Shaft Size	15.87 mm
Rotation	Bi Directional
Speed	1450 rpm
Temperature	-10 to 40 deg C
Torque Rating	3.7 N/m
Voltage	240 Volt AC
Width	245 mm
