Teco Electric Motor Squirrel Cage Induction 4P 15kW 3Ph 415V C160L Frame Horizontal Foot Mount

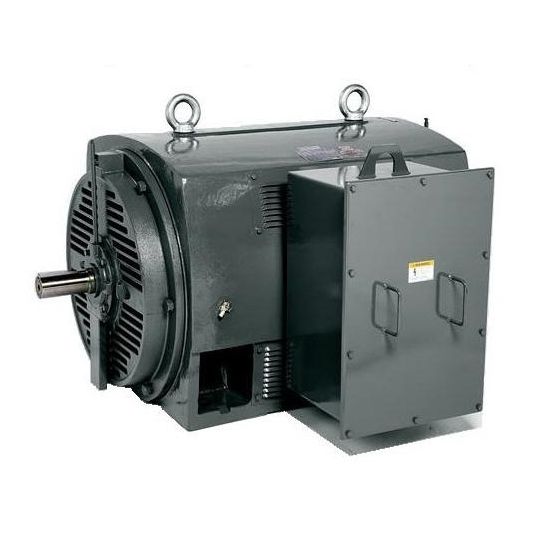

$Teco\Teco_Drip_Proof.jpg$

Description

Electric Motor Squirrel Cage Induction, 415 Volt AC, 28.1 Amp, 15 kW, 50 Hz, 3 Phase, 1460 rpm, 4 Pole, IP23, Frame: C160L, Shaft Size: 48 mm, Clockwise Rotation, Duty Cycle: S1, Vacuum De-Gassed High Quality Open Bearing, Torque: 98.1 N/m, Horizontal Foot Mount, Insulation Class: Class F, <80 deg C, Cast Iron, Light Grey, 572 mm Length x 375 mm Height

Key Specifications

SKU	TEO054/0015C4
Brand	Teco
Range Name	Open Drip Proof
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Highest quality insulation system utilizing Class H and F materials Low temperature rise for substantial thermal reserve Continuous rated, duty type S1 Cast iron/fabricated steel construction with side mounted terminal box
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	054/0015C4
Bearing Type	Vacuum De-Gassed High Quality Open
Current	28.1 Amp
Colour	Light Grey
Frame	Size C160L
Height	375 mm
Frequency	50 Hz
Horsepower	15 kW
Insulation Class	Class F
IP Rating	IP23
Material	Cast Iron
Mounting Method	Horizontal Foot
Number Of Poles	4 Pole
Phase	3 Phase
Shaft Size	48 mm
Rotation	Clockwise
Speed	1460 rpm
Torque Rating	98.1 Nm
Temperature	<80 deg C
Voltage	415 Volt AC
