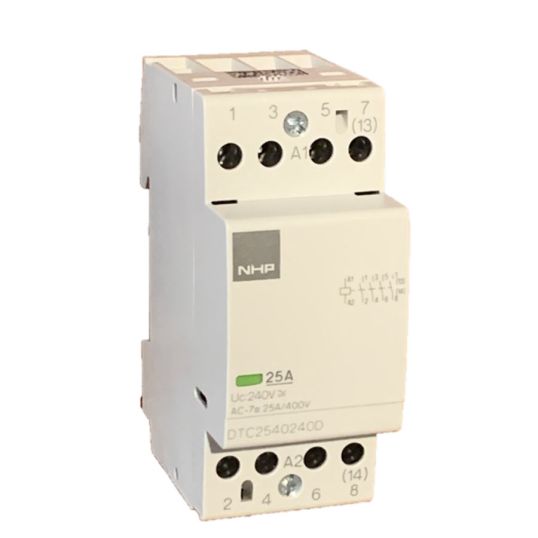

NHP DIN-T DIN Contactor 240VAC/DC Coil 25A 1.3/2.3/4kW 4NO 3P

chevron-left

Description

chevron-down
DIN Contactor, 240 Volt AC/DC Coil Voltage, 1.3 kW, 2.3 kW, 4 kW AC3 Rating, 9 Amp AC3 Rating, 25 Amp AC1 Rating, 4NO Configuration, 3, DIN Rail Mounting, 55 to 80 deg C, 85mm Height, 36mm Width, 58mm Depth

Key Specifications

chevron-down
SKU
TERDTC2540240D
Brand
NHP
Product Type
Contactors DIN

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Silent operated, hum free AC/DC coils
  • Integrated surge protection
  • Low power consumption Indicator position flag red/green
  • Space saving, no spacer required 16 Amp and 20 Amp models
  • 9mm spacer required 25 Amp, 40 Amp and 63 Amp models if duty time 1 hour and ambient >40 deg C
  • Add on auxiliary contact 2NO or 1NO/1NC
Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product DTC2540240D-NLA
AC3 Rating (Amps) 9 Amp AC3
AC1 Rating (Amps) 25 Amp AC1
Contact Configuration 4 Normally Opened
AC3 Rating (kW) 1.3/2.3/4 kW
Depth 58mm
Height 85mm
Mounting Method DIN Rail
Number Of Poles 3 Pole
Operating Coil Voltage 240 Volt AC/DC
Temperature 55 to 80 deg C
Width 36mm
