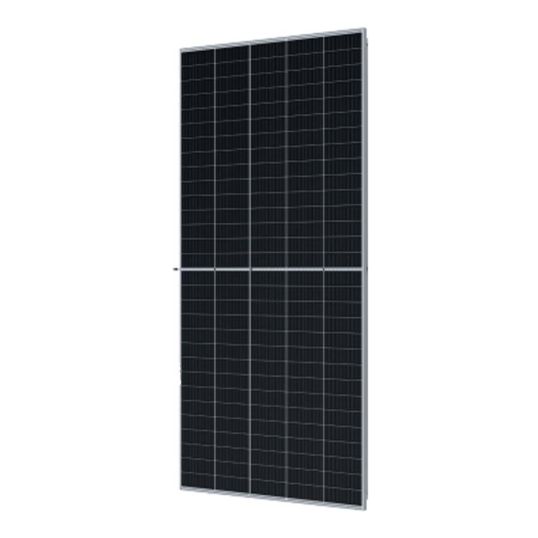

Trina Solar Panel 500W Monocrystalline 150 Cells

Description

Solar Panel, Monocrystalline Cell, 150 Cell, 500 Watt, 42.8 Volt Max. Voltage, 11.69 Amp Max. Current, 51.7 Volt Open Circuit Voltage, 12.28 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1.5 kV DC Max. System Voltage, 20.9% Efficiency, 0-5 Watt Power Tolerance, TS4/MC4 EVO2 Connector, Junction Box: IP68, Anodized Aluminium Frame, 3.2 mm High Transmission/AR Coated Heat Strengthened Glass, 0.36%/deg C Temperature Coefficient, -40 to 85 deg C, 35 mm Length, 1098 mm Width, 2176 mm Height, 26.3 kg, 12 Years Workmanship/25 Years Power

Key Specifications

SKU	TNATSM-500DE18M(II)
Brand	TRINA
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High customer value High power up to 505 Watt High reliability High energy yield
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	TSM-500DE18M(II)
Cell Type	Monocrystalline
Connector Type	TS4/MC4 EVO2
Efficiency	20.90%
Frame Construction	Anodized Aluminium
Front Glass	3.2 mm High Transmission/AR Coated Heat Strengthened Glass
Height	2176 mm
Item Weight	26.3 kg
Junction Box	IP68
Max. Current	11.69 Amp
Max. Fuse Current	20 Amp
Max. Voltage	42.8 Volt
Max. System Voltage	1.5 kV DC
Number Of Cells	150
Open Circuit Voltage	51.7 Volt
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-5 Watt
Short Circuit Current	12.28 Amp
Temperature Coefficient	0.36%/deg C
Warranty	12 Years Workmanship/25 Years Power
Wattage	500 Watt
Width	1098 mm
