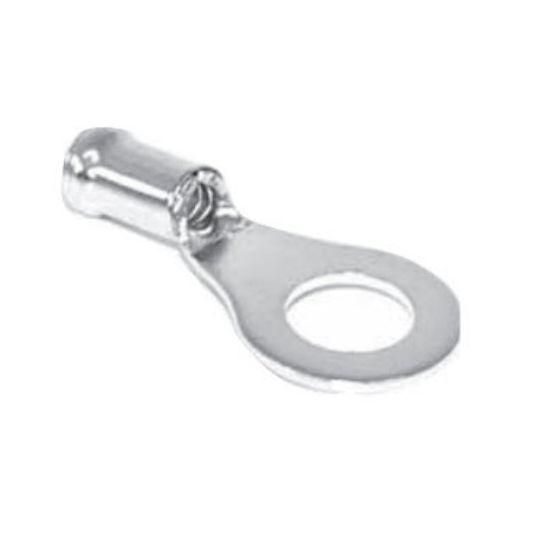

Utilux Ring Terminal Un-Insulated 1.5-2.5mm M5 Stud 22.5mm OAL
Description
Ring Terminal Un-Insulated, 1.5-2.5 mm, M5 Stud, 16-14 AWG Terminal Size, 11.1 mm Barrel Length, 76B/16, 4.3 mm Insulation Diameter, Nickel Plated, 280 deg C, 22.5 mm Overall Length, 8.7 mm Lug Width, 0.7 mm Lug Thickness, 8.7 mm Lug Inside Diameter, 100 Pack
Key Specifications
| Barcode (EAN-13) |
9313988009714
|
|---|---|
| SKU |
UTIH3225/100
|
| Brand |
Utilux
|
| Range Name |
High Temperature
|
| Product Type |
Forked & Ring Terminals
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | UTIH3225/100 |
| Barrel Length | 11.1 mm |
| Conductor Size | 1.5-2.5mm |
| Crimping Die | 76B/16 |
| Finish | Nickel Plated |
| Insulation Diameter | 4.3 mm |
| Lug Inside Diameter | 8.7 mm |
| Lug Width | 8.7 mm |
| Lug Thickness | 0.7 mm |
| Overall Length | 22.5 mm |
| Pack Size | 100 Pack |
| Stud Size | M5 |
| Temperature | 280 deg C |
| Terminal Size | 16-14 AWG |
