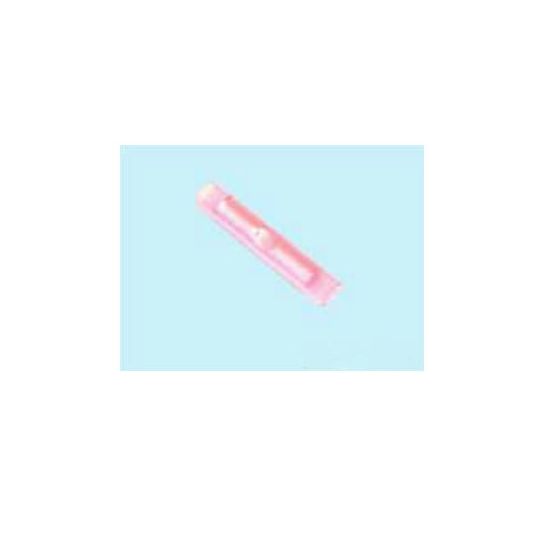

Utilux In-Line Splice Insulated Supergrip 0.5-1.5mm 1C Red 50 Pack

chevron-left

Description

chevron-down
In-Line Splice Insulated Supergrip, 0.5-1.5 mm, 1 Conductors, 76B 11C 11B 63-4B 102 120, Copper Body, Copper, Vinyl Insulation, Red Insulation, 4 mm Insulation Diameter, Tin Electroplated, 31 mm Width, 50 Pack

Key Specifications

chevron-down
Barcode (EAN-13)
9313988011151
SKU
UTIH3910/50
Brand
Utilux
Range Name
UtiLug SuperGrip
Product Type
Splice & Bullet Connectors

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Solid drawn copper tube
  • Electro tinned to minimise corrosion
  • Centre dimple to ensure correct conductor traverse inside link
  • Supergrip butt splice with translucent insulation (to ensure correct conductor insertion) and depressed centre to enable use in appropriate ratchet crimp tool without removal of stopper
Standard Pack Size 50
UNSPSC Class 39121400
UOM EA
Vendor Product UTIH3910/50
Body Material Copper
Conductive Material Copper
Conductor Size 0.5-1.5mm
Crimping Die 76B 11C 11B 63-4B 102 120
Finish Tin Electroplated
Insulation Diameter 4 mm
Insulation Material Vinyl
Insulation Colour Red
Pack Size 50 Pack
Number of Conductors 1
Width 31 mm
