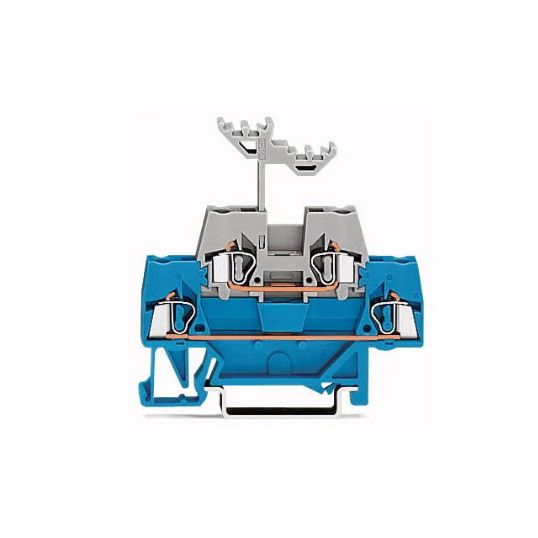

Wago Rail Terminal Block Double Deck 2 Level 2.5mm Blue/Grey Polyamide 66

$Wago\Wago_280-523.jpg$

Description

Terminal Block, 2.5 mm, 500 Volt, 6 kV Rated Surge Voltage, 20 Amp, 8-9 mm Wire Strip Length, Through/Through Wiring Format, Front Wire Entry Orientation, 4 Connection Points, 2 Potential, 2 Level, Centre Marking Position, (III / 3) Overvoltage category III / Pollution degree 3 Marking, 0.166 MJ Fire Load, Operating Tool Actuation Type, Cage Clamp Terminal, DIN Rail Mounting, Copper/Aluminium Conductor, Polyamide 66 Insulation, Blue/Grey, -35 to 85 deg C, UL94 V0 Flammability, 64 mm Height, 58.5 mm Width, 5 mm Depth

Key Specifications

Barcode (EAN-13)	4017332422598
SKU	WAG280-523
Brand	Wago
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	280-523
Actuation Type	Operating Tool
Conductor Material	Copper/Aluminium
Colour	Blue/Grey
Conductor Size	2.5mm
Current Rating	20 Amp
Depth	5 mm
Fire Load	0.166 MJ
Height	64 mm
Flammability	UL94 V0
Insulation Material	Polyamide 66
Marking	(III / 3) Overvoltage category III / Pollution degree 3
Marking Position	Centre
Mounting Method	DIN Rail
Number of Connection Points	4
Number of Potentials	2
Number of Levels	2
Rated Surge Voltage	6 kV
Temperature	-35 to 85 deg C
Voltage Rating	500 Volt
Terminal Type	Cage Clamp
Width	58.5 mm
Wire Entry Orientation	Front
Wire Strip Length	8-9 mm
Wiring Format	Through/Through
