Wago Male Connector 4mm For Terminal Block Polyamide 66 Grey 40.2mm W

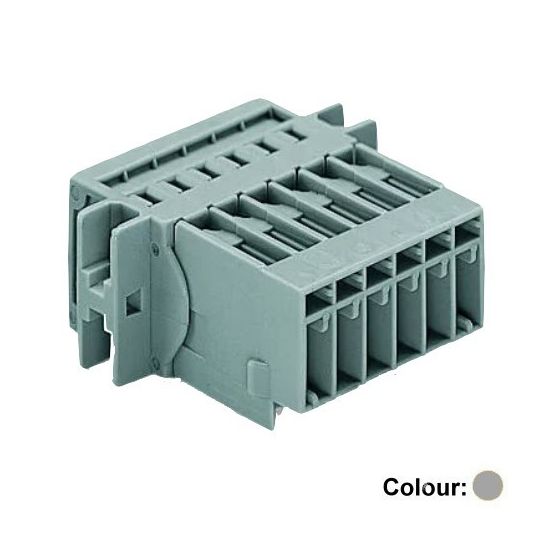

This male connector (item number 769-612) simplifies electrical installations. Pluggable rail-mount terminal blocks are hugely popular in switchgear and control systems, for example, in railroad technology. They combine the best of rail-mount terminal blocks and connectors to create the perfect solution. Variable wiring systems make pre-assembly easy, which leads to considerable time and cost savings in production, installation, operation, and maintenance. This pluggable rail-mount terminal block has a rated voltage of 500 V and can handle currents up to 32 A. Ensure that the strip lengths are between 8 mm and 9 mm when connecting conductors to this male connector. This product incorporates conductor terminals and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection offers a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Dimensions: 63.6 x 18.3 x 40.2 mm (width x height x depth). Depending on the type of conductor, this male connector is suitable for conductor cross sections ranging from 0.08 sq-mm to 4 sq-mm . There are twelve clamping points available for connecting twelve different potentials/twelve poles. The grey housing is made of polyamide (PA66) for insulation. This male connector/plug is operated with an operating tool. Conductors made of copper can be connected thanks to front-entry wiring.
