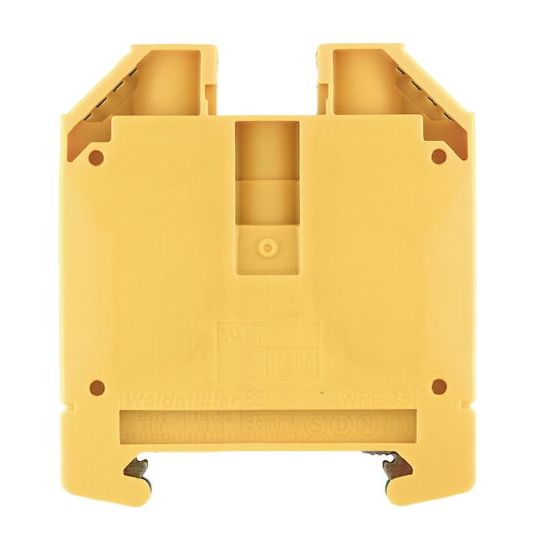

Weidmuller PE Terminal WPE 35 35mm 2 Wire 800V 4200A Screw Connection Wemid Green/Yellow
Description
PE Terminal Block, 35 mm, 800 Volt, 4200 Amp, 18 mm Wire Strip Length, 4-5 Nm Tightening Torque, 2 Connection Points, 1 Potential, 1 Level, Screw Terminal, Screw Mounting, Wemid Insulation, Green/Yellow, -60 to 130 deg C, UL94 V0 Flammability, 56 mm Height, 16 mm Width, 62.5 mm Depth
Key Specifications
| Barcode (EAN-13) |
4008190112806
|
|---|---|
| SKU |
WEI1010500000
|
| Brand |
Weidmuller
|
| Product Type |
Termninal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 25 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 1010500000 |
| Colour | Green/Yellow |
| Conductor Size | 35mm |
| Current Rating | 4200 Amp |
| Depth | 62.5 mm |
| Flammability | UL94 V0 |
| Insulation Material | Wemid |
| Height | 56 mm |
| Mounting Method | Screw |
| Number of Connection Points | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Terminal Type | Screw |
| Temperature | -60 to 130 deg C |
| Tightening Torque | 4-5 Nm |
| Voltage Rating | 800 Volt |
| Width | 16 mm |
| Wire Strip Length | 18 mm |
