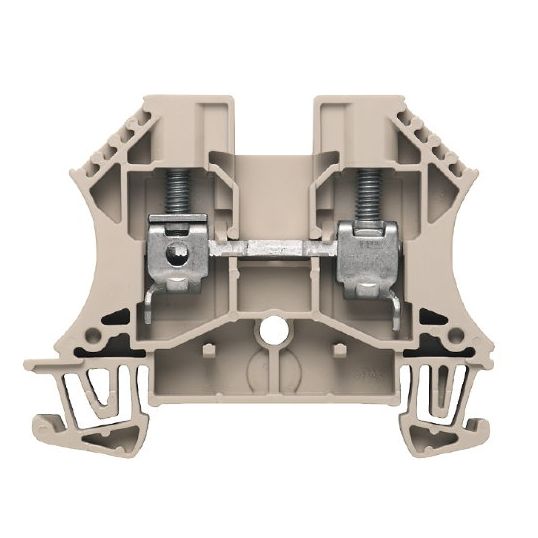

Weidmuller Feed-Through Terminal WDU 6 Screw Connection 6mm 800V 41A Dark Beige
Description
Feed Through Terminal Block, 6 mm, 800 Volt, 41 Amp, 12 mm Wire Strip Length, 0.8-1.6 Nm Tightening Torque, 2 Connection Points, 1 Potential, 1 Level, Snap In Mounting, Wemid Insulation, Beige, -60 to 130 deg C, UL94 V0 Flammability, 60 mm Height, 7.9 mm Width, 46.5 mm Depth
Key Specifications
| SKU |
WEI1020200000
|
|---|---|
| Brand |
Weidmuller
|
| Product Type |
Termninal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 1020200000 |
| Colour | Beige |
| Conductor Size | 6.0mm |
| Current Rating | 41 Amp |
| Depth | 46.5 mm |
| Flammability | UL94 V0 |
| Insulation Material | Wemid |
| Height | 60 mm |
| Mounting Method | Snap In |
| Number of Connection Points | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Temperature | -60 to 130 deg C |
| Tightening Torque | 0.8-1.6 Nm |
| Voltage Rating | 800 Volt |
| Width | 7.9 mm |
| Wire Strip Length | 12 mm |
