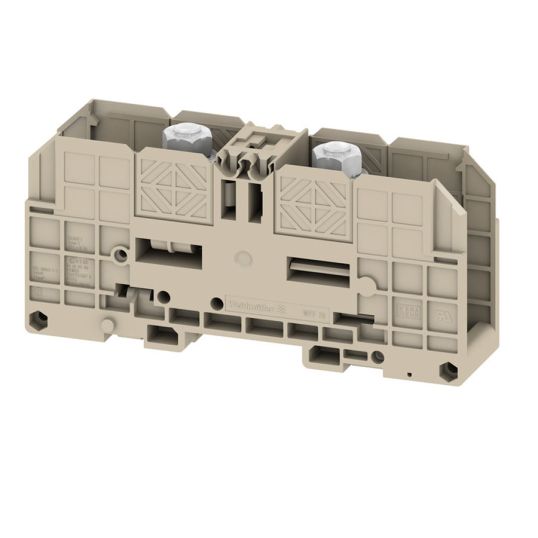

Weidmuller Klippon WF/WFF Series 2-Stud Terminal WFF 70 M8 70mm 1000V 192A 2.5-95mm Lugs
Description
Terminal Block Stud, 70 mm, 1000 Volt, 192 Amp, 6-12 Nm Tightening Torque, 2 Connection Points, 1 Level, Snap In Mounting, Wemid Insulation, Beige, -50 to 120 deg C, UL94 V0 Flammability, 132 mm Height, 31.8 mm Width, 61 mm Depth
Key Specifications
| Barcode (EAN-13) |
4008190083311
|
|---|---|
| SKU |
WEI1028400000
|
| Brand |
Weidmuller
|
| Product Type |
Rail Terminal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 10 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 1028400000 |
| Colour | Beige |
| Conductor Size | 70mm |
| Current Rating | 192 Amp |
| Depth | 61 mm |
| Flammability | UL94 V0 |
| Insulation Material | Wemid |
| Height | 132 mm |
| Mounting Method | Snap In |
| Number of Connection Points | 2 |
| Number of Levels | 1 |
| Temperature | -50 to 120 deg C |
| Tightening Torque | 6-12 Nm |
| Voltage Rating | 1000 Volt |
| Width | 31.8 mm |
