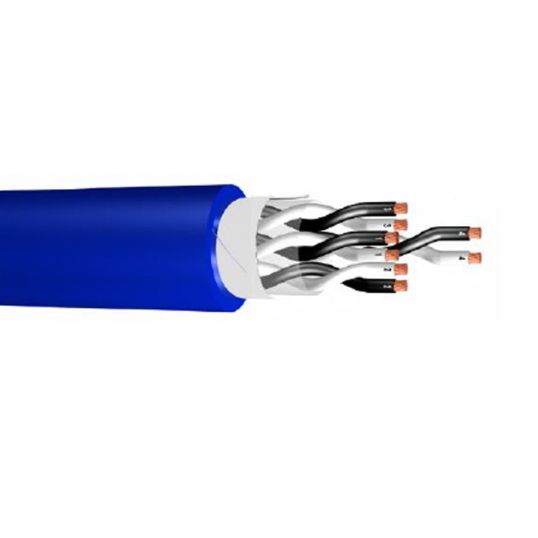

WWC Machlink 600 Instrumentation Cable Unarmoured 6 Pair Overall Screened 1.5mm 110/150V PVC/AL/PVC Blue
Description
Instrumentation Cable, Unarmoured, 6 Pair, Overall Screened, 1.5 mm, Class 2 Bare Copper, 110/150 Volt, 7/0.5 mm Strands, 18.5 mm Overall Diameter, Bend Radius: Static - 111 mm, Conductor Resistance: 13.6 Ohm/km, Insulation Resistanc: 140 MOhm/km, 100% Screen Coverage, Aluminium/Polyester Tape Screen, V-90 PVC Insulation, V-90 PVC Sheath, Blue Sheath
Key Specifications
| SKU |
WWC5993
|
|---|---|
| Brand |
WWC
|
| Range Name |
Machlink Type 600
|
| Product Type |
Instrumentation Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 5993 |
| Conductor Size | 1.5 mm |
| Conductor Resistance | 13.6 Ohm/km |
| Conductor Type | Class 2 Copper |
| Bend Radius | Static: 111 mm |
| Insulation Resistance | 140 MOhm/km |
| Insulation Material | V-90 PVC |
| Number of Pairs | 6 Pair |
| Overall Diameter | 18.5 mm |
| Screen Coverage | 100% |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Blue |
| Screen Format | Overall Screened |
| Sheath Material | V-90 PVC |
| Stranding | 7/0.5 mm |
| Voltage | 110-150 Volt |
