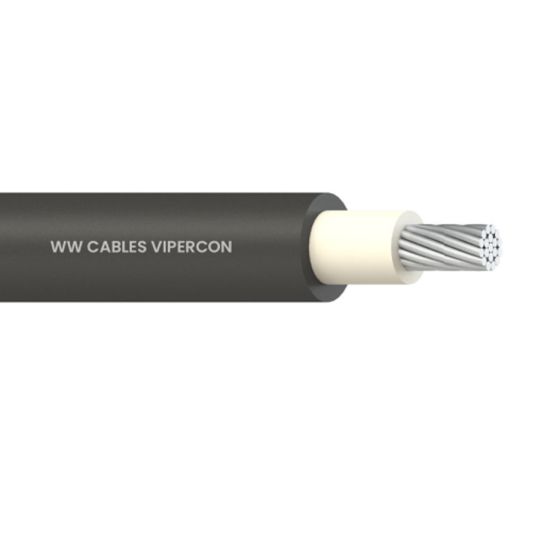

Cable 1 Core 185mm 0.6/1kV Class 2 Aluminium X-90 XLPE/5V-90 PVC Black

chevron-left

Description

chevron-down
SDI, 185 mm, Compacted Aluminium, 0.6-1 kV, 1 Core, 16.2 mm Nominal Diameter, 22.8 mm Overall Diameter, 301 mm During Installation/201 mm After Installation Bend Radius, 1.6 mm Insulation Thickness, 0.164 Ohm/km Conductor Resistance, X-90 XLPE Insulation, White Insulation, 5V-90 PVC Sheath, Black Sheath, -40 to 90 deg C, AS/NZS 5000.1 AS/NZS 1660.5.6 AS/NZS 3808 AS/NZS 1125

Key Specifications

chevron-down
SKU
WWCAL185
Brand
WWC
Product Type
Flexible Cable SDI

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Flame Retardant
  • UV Stabilised
Standard Pack Size 1
UNSPSC Class 26121500
UOM MTR
Vendor Product AL185
Bend Radius 301 mm During Installation - 201 mm After Installation
Conductor Resistance 0.164 Ohm/km
Conductor Size 185 mm
Conductor Type Compacted Aluminium
Insulation Colour White
Insulation Material X-90 XLPE
Insulation Thickness 1.6 mm
Nominal Diameter 16.2 mm
Number of Cores 1 Core
Overall Diameter 22.8 mm
Sheath Colour Black
Sheath Material 5V-90 PVC
Standards AS/NZS 5000.1 AS/NZS 1660.5.6 AS/NZS 3808 AS/NZS 1125
Temperature -40 to 90 deg C
Voltage 0.6-1 kV
